A square section closed on all four walls: balanced strength on both axes and torsional stiffness no open section can match. The standard part for posts, frames and columns. Pultruded by NA-ME Composite.
↳ we make rectangular tube as well — send your dimensions

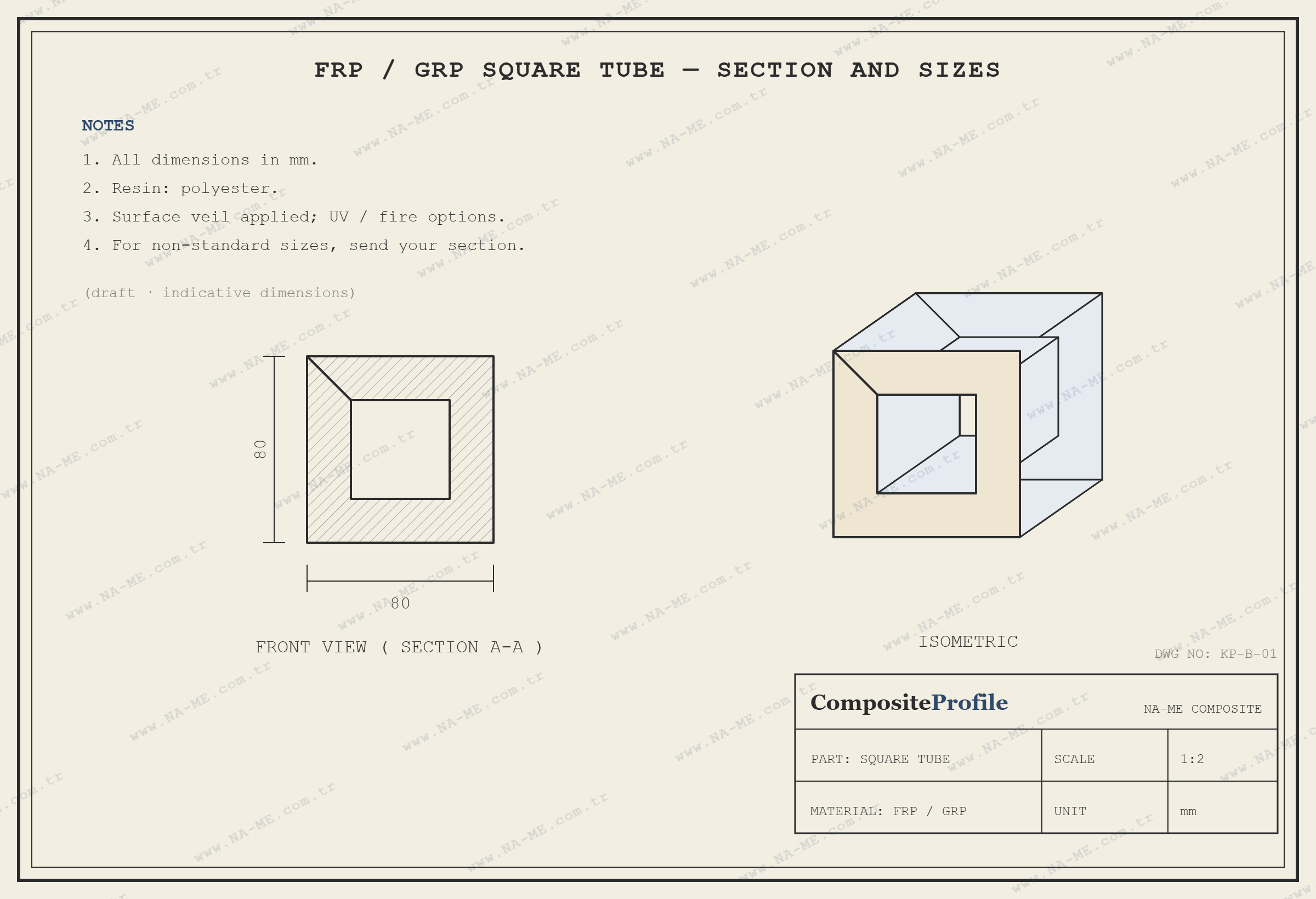

The square tube is a section closed on all four walls, square or rectangular. Being closed brings two things: the profile behaves much the same whichever direction the load comes from, and it is many times stiffer in torsion than an open section. That makes it the right choice for free-standing posts, frame corners, cantilevers fixed at one point and members taking wind load.
Handrail newels and intermediate posts, stair and platform legs, racking and storage systems, machine guard cages, panel and door frames and field equipment stands are the most common applications. Being hollow brings an extra advantage: cable or hose can be run through the section, and with end caps fitted you get a sealed body. In wet, salty or chemically laden air, a closed section also limits dirt and moisture building up on inner surfaces.
| Code | A (mm) | B (mm) | Wall t (mm) | Weight (kg/m) |
|---|---|---|---|---|
| CPB-O-101 | 25 | 25 | 3 | 0,50 |
| CPB-O-102 | 30 | 30 | 2 | 0,41 |
| CPB-O-103 | 40 | 40 | 4 | 1,07 |
| CPB-O-104 | 45 | 20 | 3 | 0,66 |
| CPB-O-105 | 45 | 45 | 5 | 1,48 |
| CPB-O-106 | 50 | 20 | 2 | 0,49 |
| CPB-O-107 | 50 | 20 | 5 | 1,10 |
| CPB-O-108 | 50 | 30 | 5 | 1,30 |
| CPB-O-109 | 50 | 50 | 3 | 1,04 |
| CPB-O-110 | 50 | 50 | 4 | 1,32 |
| CPB-O-111 | 50 | 50 | 5 | 1,57 |
| CPB-O-112 | 50 | 50 | 6 | 1,91 |
| CPB-O-113 | 58 | 25 | 3 | 0,90 |
| CPB-O-114 | 63 | 63 | 6 | 2,52 |
| CPB-O-115 | 64 | 27 | 4 | 0,88 |
| CPB-O-116 | 70 | 26 | 4 | 1,27 |
| CPB-O-117 | 72 | 28 | 3 | 1,03 |
| CPB-O-118 | 75 | 40 | 3 | 1,05 |
| CPB-O-119 | 75 | 40 | 4 | 1,46 |
| CPB-O-120 | 75 | 75 | 6 | 3,10 |
| CPB-O-121 | 75 | 75 | 9 | 4,62 |
| CPB-O-122 | 80 | 25 | 3 | 1,10 |
| CPB-O-123 | 80 | 25 | 4 | 1,31 |
| CPB-O-124 | 80 | 25 | 5 | 1,36 |
| CPB-O-125 | 80 | 40 | 3 | 1,22 |
| CPB-O-126 | 80 | 40 | 4 | 1,66 |
| CPB-O-127 | 80 | 40 | 5 | 1,97 |
| CPB-O-128 | 88 | 88 | 6 | 3,64 |
| CPB-O-129 | 88 | 88 | 9 | 5,26 |
| CPB-O-130 | 95 | 50 | 3 | 1,55 |
| CPB-O-131 | 95 | 50 | 5 | 2,50 |
| CPB-O-132 | 100 | 50 | 5 | 2,60 |
| CPB-O-133 | 100 | 60 | 6 | 3,30 |
| CPB-O-134 | 100 | 100 | 4 | 2,68 |
| CPB-O-135 | 100 | 100 | 6 | 4,14 |
| CPB-O-136 | 100 | 100 | 8 | 5,30 |
| CPB-O-137 | 100 | 100 | 10 | 6,53 |
| CPB-O-138 | 120 | 60 | 6 | 3,54 |
| CPB-O-139 | 120 | 120 | 6 | 5,05 |
| CPB-O-140 | 120 | 120 | 10 | 7,80 |
| CPB-O-141 | 130 | 60 | 3.5 | 2,25 |
| CPB-O-142 | 130 | 60 | 6 | 3,90 |
| CPB-O-143 | 150 | 100 | 6 | 5,08 |
| CPB-O-144 | 150 | 100 | 10 | 8,34 |
| CPB-O-145 | 160 | 60 | 8 | 6,04 |
| CPB-O-146 | 175 | 175 | 8 | 10,00 |
| CPB-O-147 | 175 | 175 | 17 | 20,00 |
| CPB-O-148 | 200 | 60 | 5 | 4,62 |
| CPB-O-149 | 200 | 60 | 9 | 8,06 |
| CPB-O-150 | 300 | 60 | 6 | 7,75 |
| CPB-O-151 | 350 | 60 | 5 | 9,50 |
| CPB-O-152 | 350 | 60 | 6 | 9,50 |
↳ Need rectangular tube, a different wall or a non-standard side? Send your section and we will cut the die.
Every face carries the same protection against chemical vapor and salt water, so no rust pocket forms in the inside corner.
Long posts are lifted and set by hand, and the load on anchors and foundations drops noticeably.
A non-conductive body for power, solar and transformer sites, with no separate insulation measures required.
A closed section does not crush or take a permanent set under impact and torsion, and with a UV-protected surface it stays in service for years.
Give us the side dimension, wall thickness and length (a×a×t plus quantity); tell us the post height and the load and we will pick the right section together. We price it against the job — dimensions are enough to start.
